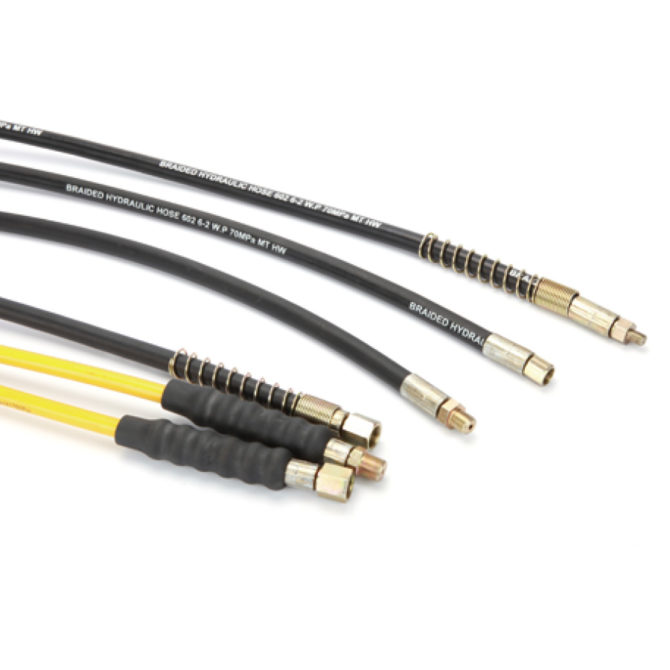

700bar Hoses Model: RH_M, TPH_M Characteristics: Max working pressure 700 bar, featuring a 4:1 safety factor Do not exceed 700 bar maximum pressure. Do not handle hoses which are under pressure. Hose Oil Capacity When using greater hose lengths, it is sometimes necessary to fill the pump reservoir after filling the hoses. To determine…

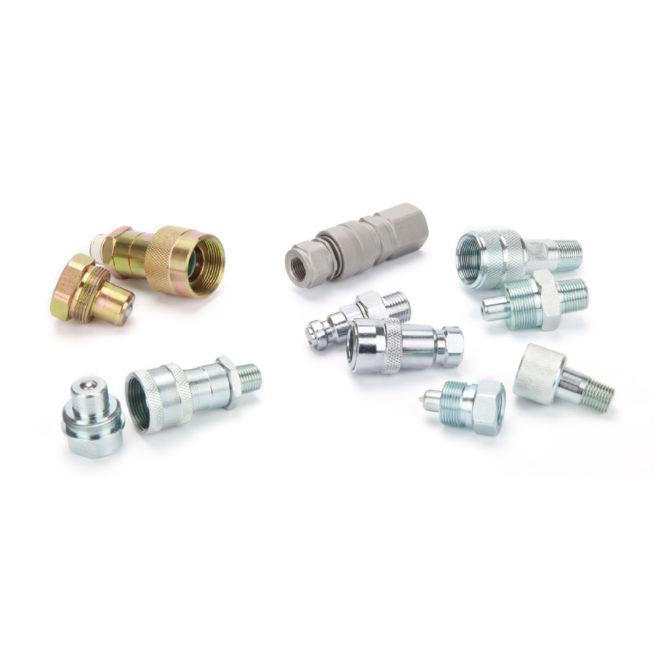

Couplers Model: HC7001, HC7002, HC7003… Characteristics: The couplers are for quick connection of hose end to system components, working pressure 700 bar. Thread sealer: To seal NPTF thread use one of the new anaerobic thread sealers or Teflon paste. Parameters:

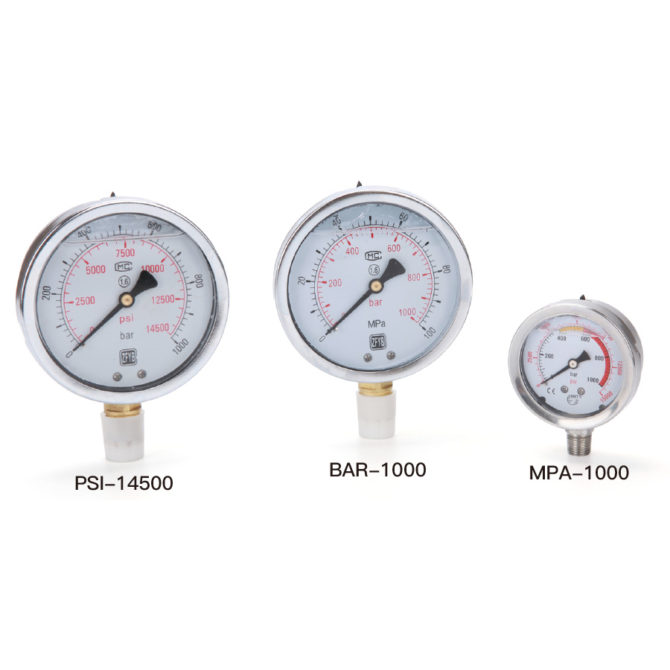

Gauges Model: PSI-14500, BAR-1000, MPA-1000 Characteristics: Gauges are for monitoring pressure of the hydraulic circuit. Parameters:

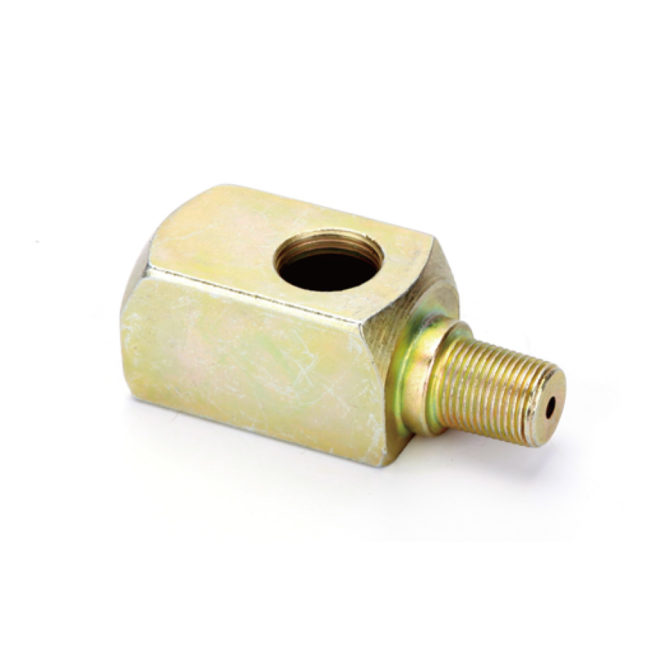

Gauge Adaptors Model: GA7001, GA7002 Characteristics: For easy gauge installation into almost any system, TLP offers a complete line of gauge adaptors. Parameters:
4-port manifold Model: MF4RCT Characteristics: Allow distribution of hydraulic fluid from one power source to several cylinders. Working pressure 700 bar, outlet port 3/8”NPT. Parameters:
3-port manifold Model: MF3RCT Characteristics: Allow distribution of hydraulic fluid from one power source to several cylinders. Working pressure 700 bar, outlet port 3/8”NPT. Parameters:
2-port manifold Model: MF2RCT Characteristics: Allow distribution of hydraulic fluid from one power source to several cylinders. Working pressure 700 bar, outlet port 3/8”NPT. Parameters:
6-port hexagon manifold Model: MF6HEX Characteristics: Allow distribution of hydraulic fluid from one power source to several cylinders. Working pressure 700 bar, outlet port 3/8”NPT. Parameters:
Safety Holding Valve Model: HDL700 Characteristics: Controls load descent in lifting applications. Parameters:
Needle Valve Model: SOV700 Characteristics: Regulates the flow of hydraulic fluid to or from the cylinders. Parameters:
